Name: |

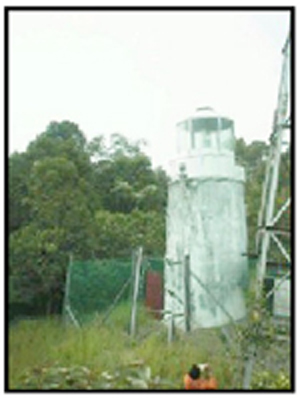

Tanjong Dato Lighthouse |
| Location: |
Lat: 02°04'48" ; Long: 109°38'18" |
| Structure: |
Concrete Cylinder tower |
| Height: |
8 meters |
| Elevation: |
171 meters |
| Light Character: |
FL. 15 sec (21.5NM Range) |
| Present Lantern: |
Installed 1993 Rotating Beacon RB355 (Tideland) - Main lantern -12v/75w Quartz halogen lamp Rotating Beacon RB300 (Tideland) - Emergency Lantern - 12v/75w Quartz halogen lamp. |
Power Source:
|
Secondary battery & solar panel |
| Previous Lantern: |
Installed 1988 PRB-46 Sealed beam Rotating beacon - Main lantern - 4.5A/5.6V sealed beam lamp |
| Power Source: |
Secondary battery & solar panel |
| |
|
|
| |
|
|
 |
Name: |
Tanjong Po Lighthouse (1872) |
| Location: |
Lat:01°43'30.8" ; Long:110°31'12.6" |
| Structure: |
Steel Frame & Wall |
| Height: |
15 meters |
| Elevation: |
131 meters |
| Light Character: |
GP. FL (2) 10 sec (24NM Range) |
| Present Lantern: |
Installed 1992 Revolving Lantern (GAKUYO TOKI KOGYO) - Main lantern - 12v/40w halogen lamp 300MM Lantern (GTK) - Emergency Lantern - 24v/250w halogen lamp |
| Power Source: |
Secondary battery charge by solar Period Of Autonomy = 14 days(Secondary battery) |
| Previous Lantern: |
Installed 1936 5TH order rotating optic (Stone Chance) |
| Power Source: |
Diesel generators 2 KW DC |
|
|
|
|
|
|
|
Name: |
Tanjong Jerijeh Lighthouse |
| Present Lantern: |
Installed 1992 Revolving Lantern (GAKUYO TOKI KOGYO) - Main lantern - 12v/40w halogen lamp 300MM Lantern (GTK) - Emergency Lantern - 24v/250w halogen lamp |
Power Source:
|
Secondary battery charge by solar Period of autonomy = 14 days(Secondary Battery) |
| Previous Lantern: |
Installed 1936 5TH order rotating optic (Stone Chance) - 110VDC/1000w lamp |
| Power Source: |
Diesel generators 2 KW DC |
|
|
|
|
|
|
|
Name: |
Tanjong Sirik Lighthouse (1.11.1882) |
| Location: |
Lat: 02°76‘75.79" ; Long: 111°31‘65.87" |
| Structure: |
Galvanized Tower |
| Height: |
36 meters |
| Elevation: |
38 meters |
| Light Character: |
FL. 10 sec (24NM Range) |
| Present Lantern: |
Installed 1998 PRB-20 Revolving Beacon (PHAROS MARINE) - Main lantern - 230v/100w Arc lamp & 12V/100w standby lamp. |
| Power Source: |
Secondary battery charge by solar Period of autonomy - 14 days |
| Previous Lantern: |
ZL-LH-24C Rotating Lantern (Zeni - Lite) - Main lantern - 24v/80w Halogen lamp - Installed 1988 |
| Power Source: |
Secondary battery charge by solar |
|
|
|
|
|
|
|
Name: |
Tanjong Kidurong Lighthouse (1872) |
| Location: |
Lat: 03°16'30" ; Long: 113°03'49.2" |
| Structure: |
Steel tower |
| Height: |
21 meters |
| Elevation: |
90 meters |
| Light Character: |
GP. FL (2) 15 sec (23NM Range) |
| Present Lantern: |
Installed 1988 ZL-LH-24C Rotating Lantern (Zeni - Lite) - Main lantern - 24v/80w Halogen lamp |
| Power Source: |
Standby Power Source: Secondary battery charge by solar & Sesco AC |
| Previous Lantern: |
Not Known |
| Power Source: |
Not Known |
|
|
|
|
|
|
|
|
Name: |
Tanjong Lobang Lighthouse |
| Location: |
Lat: 04°21'44".13 ; Long: 113°57'43".59 |
| Structure: |
Steel Tower |
| Height: |
16 meters |
| Elevation: |
47 meters |
| Light Character: |
FL 10 sec (16 NM Range) |
| Present Lantern |
Installed 1988 PRB-46 Sealed beam Rotating beacon - Main lantern - 4.5A/5.6V sealed beam lamp 500mm lantern mouled glass - Emergency lantern - 230V/1000w |
| Power Source: |
Commercial power supply with convertor /Standby battery 1200 A/H |
| Previous Lantern: |
500mm lantern mouled glass - Emergency lantern - 230V/1000w |
| Power Source: |
Commercial power supply with convertor |
|
|
|
|
|
|
 |
Name: |
Tanjung Baram Lighthouse |
| Location: |
Lat: 04°35'45".64 ; Long: 113°58'25".91 |
| Structure: |
Steel Tower |
| Height: |
45 meters |
| Elevation: |
47 meters |
| Light Character: |
GP. FL (3) 20 sec (23NM Range) |
| Present Lantern: |
Installed 1988 ZL-LH-24C Rotating Lantern (Zeni - Lite) - Main lantern - 24v/80w Halogen lamp |
| Power Source |
Commercial power supply |
| Previous Lantern: |
5TH order rotating optic (Stone Chance) - 110VDC/1000w lamp - installed 1936 |
| Power Source: |
Diesel engine |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
